Stop Log Panels
Read More
Find out more about Stop Logs by reading our Product Blog Articles.
Related ArticlesMain content
- T Thickness
- W Width
- L Length
Pricing current as of: January 22nd, 2024
Product
Size (T × W × L)
Features
Price
(Per Item)
(Per Item)
Min. Quantity

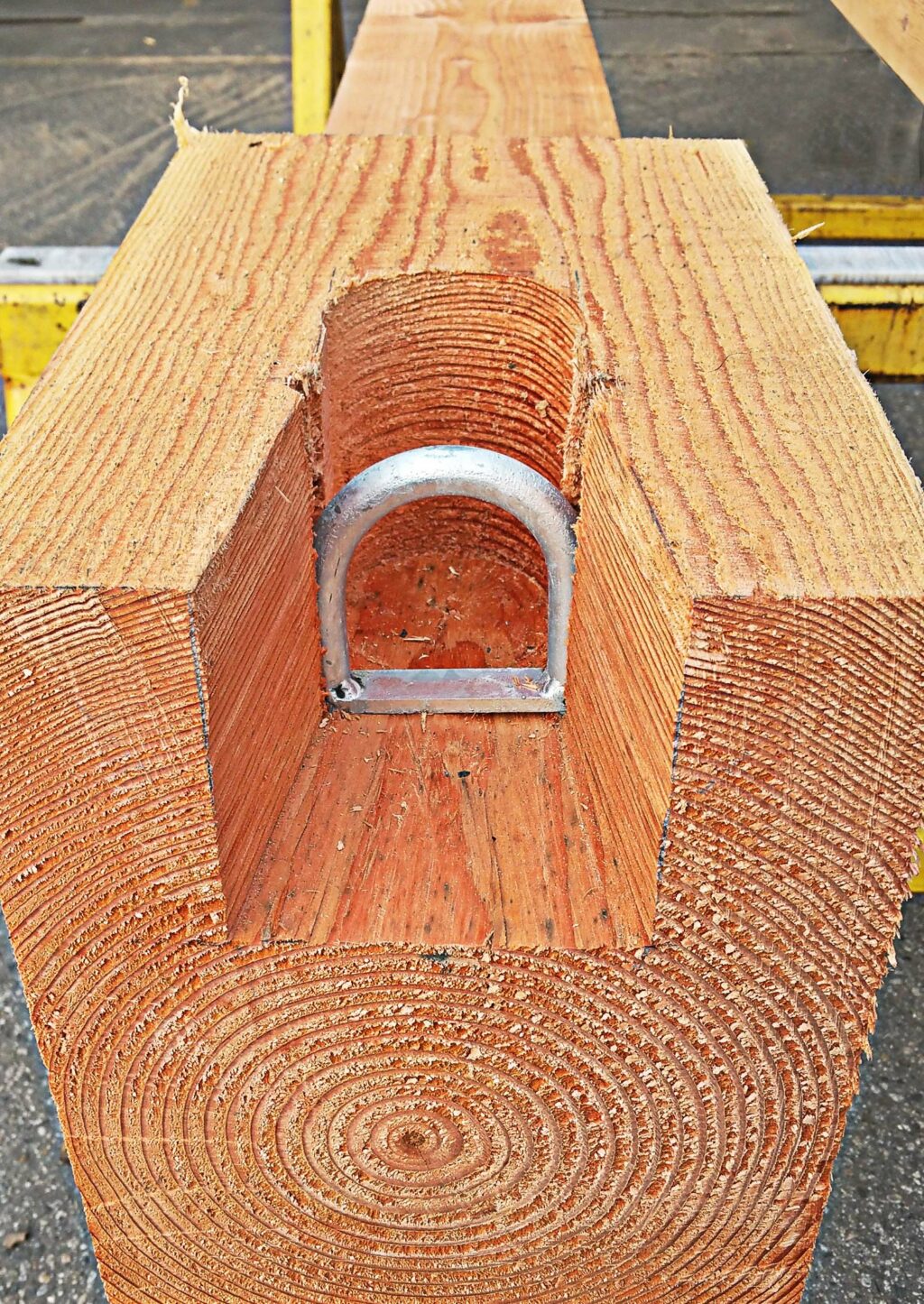

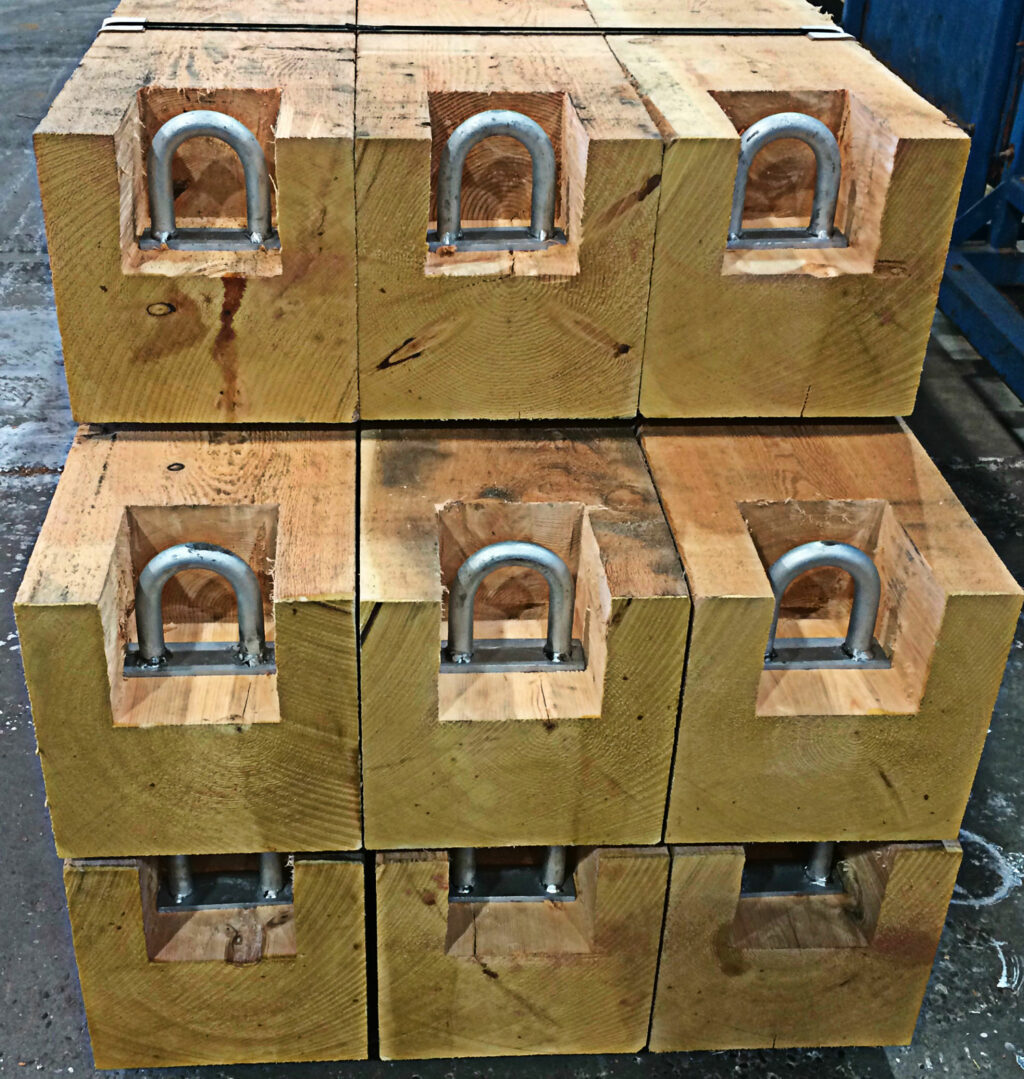

10" x 12" x 13' Single Stop Log U-Bolt
- 10"
- × 12"
- × 13'
U-Bolt pick up both ends, Douglas Fir Select Structural
Prices shown are for indication purpose
$1,150.00
10" x 12" x 16' Single Stop Log U-Bolt
- 10"
- × 12"
- × 16'
U-Bolt pick up both ends
Douglas Fir structural
$1,400.00
12" x 12" x 22' Single Stop Log U-Bolt
- 12"
- × 12"
- × 22'
U-Bolt pick up both ends, Douglas Fir Select Structural
$1,600.00

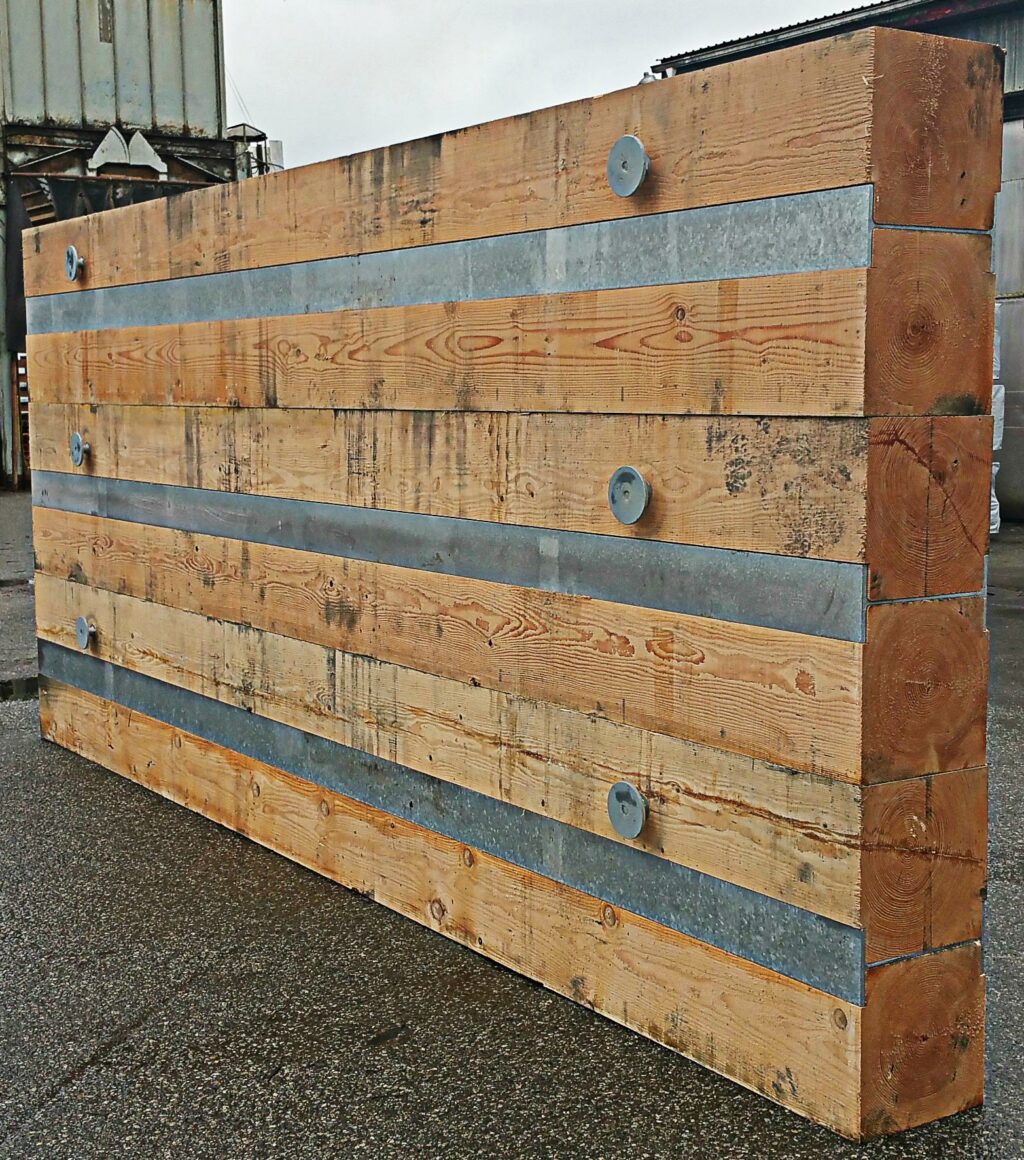

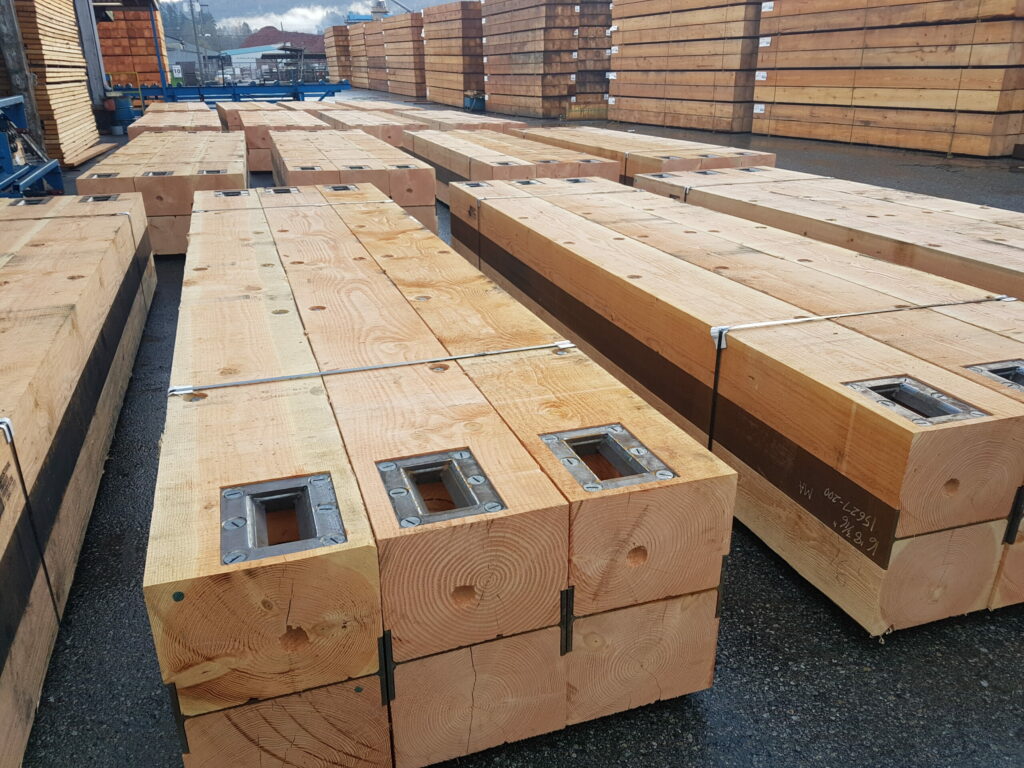

12" x 24" x 22' Double Stop Log H Beam Lug Pick-up
- 12"
- × 24"
- × 22'
Douglas Fir Select Structural complete with steel H Beam reinforcement including lifting lug pick-up ears
$3,900.00

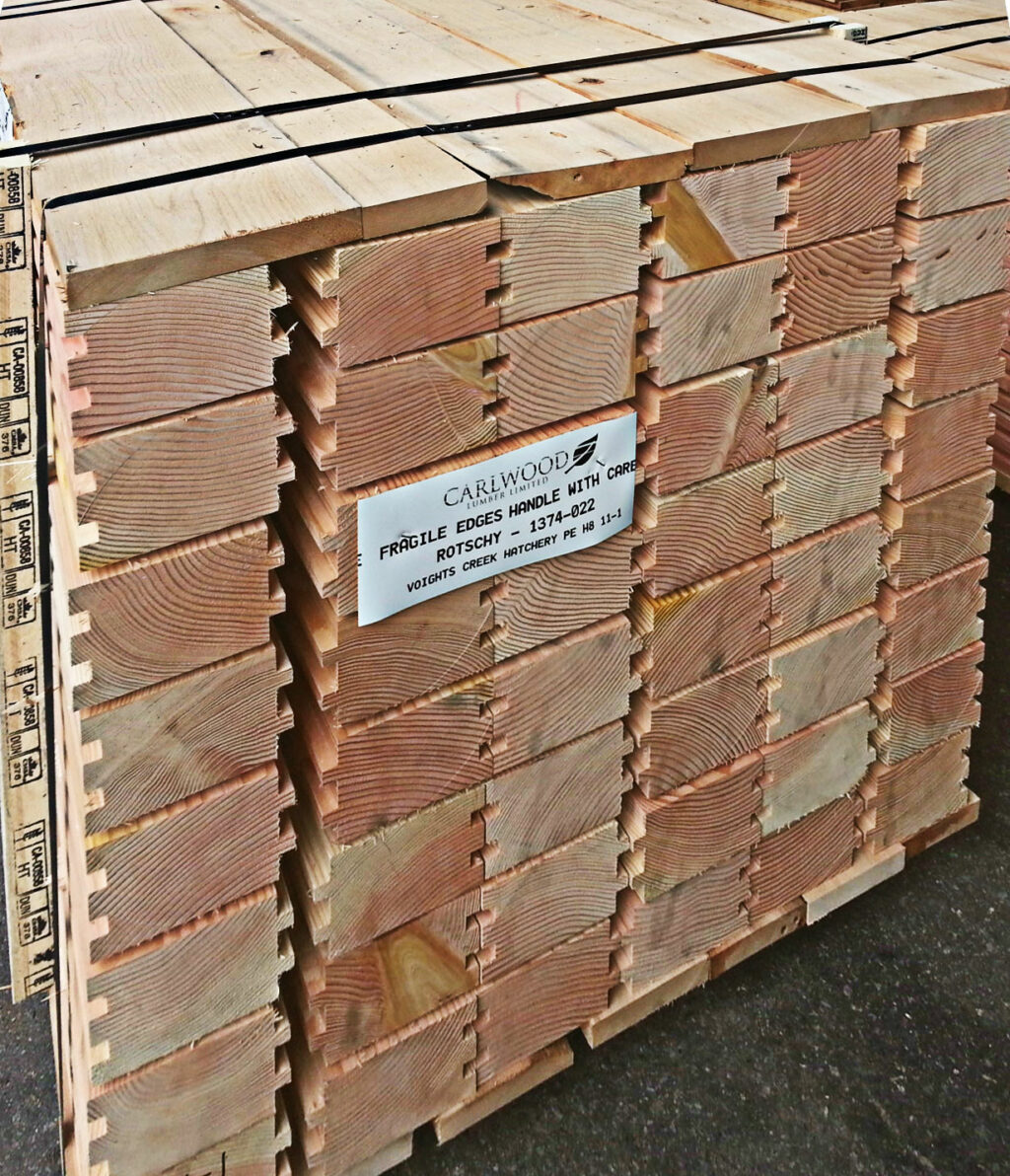

2.5" x 6" x 5' Fish Hatchery Style Stop Log
- 2.5"
- × 6"
- × 5'
Douglas Fir structural
Tongue and groove loose
Fit with steel pin pick up
$125.00
All products can be manufactured to custom sizes.
Pricing current as of: January 22nd, 2024
Product Features:
- Stop Logs can be separated by a rubber membrane to stop water leaks. We can put a "saw slot" along the timbers to accommodate the membrane
- Stop Log panels - timbers should have full width hardwood splines to add strength and reduce leakage
- Wood is untreated (with no preservative) because they are located in freshwater streams and fish bearing creeks and lakes. Stop Logs should never be Chemically treated (that went out of fashion in the 90's)
- Price as indicated are just examples, every Stop Log or Stop Log panel are unique
Optional Product Features:
- Harpoon "receivers" can be added which are designed to "lock in" the individual log
- U-Bolt lifters or through-bolt "ears" (lifting lugs) for stop-log-lifter designed equipment
- Steel pins for lifting small Stop Logs with hand lifter (supplied)
- Stainless handles can be added for smaller logs
- Ballast Plates can be added to over-come floatation issues. Floatation depends by project, typically a panel is "above the water line" and may not require ballast.
